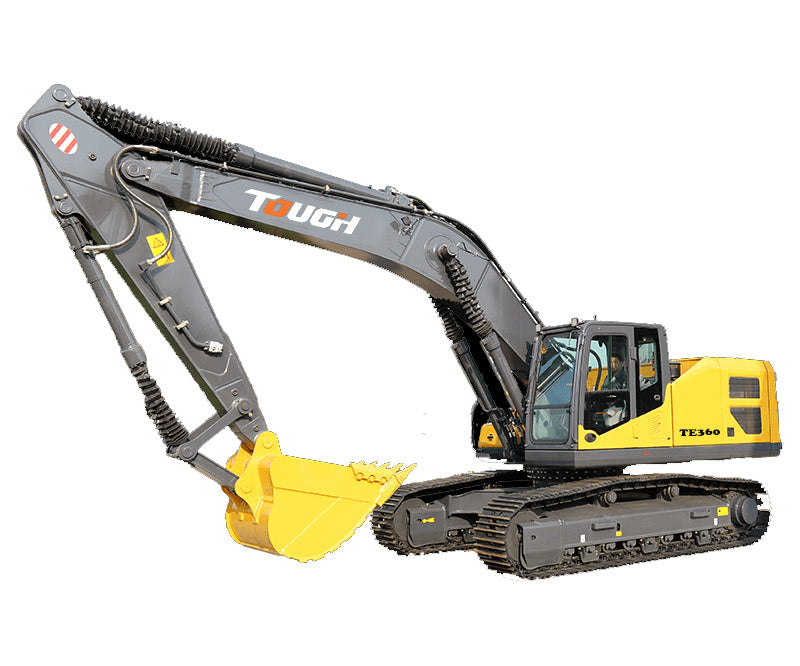

Tough TE360
Powerful and Efficient Operation
The entire machine is equipped with a custom high-power engine, leading the industry in torque output. With ample torque reserve, it excels in hard material excavation and rock breaking. The well-known brand’s main pump features a large displacement, and the main valve with a large flow diameter reduces loss and increases efficiency, resulting in faster operation speeds. The large bucket capacity enhances loading efficiency, and the thickened cylinders increase digging force, making it suitable for heavy-duty tasks.
Sturdy and durable design
Using high-strength weather-resistant and wear-resistant steel plates, the lifespan is extended by more than 20%. Standard configuration includes heavy-duty X-type tracks for mining, with increased plate thickness in key areas, enhancing strength by 10%. European-style heavy-duty buckets reduce resistance and wear, enhancing excavation efficiency and comfort.
Comfort and safety assurance
Commercial vehicle-grade NVH optimization, smooth and comfortable. The ROPS cab ensures safety and provides clear visibility. Comfortable seats with multifunctional equipment.
Convenient maintenance and expansion
The large-angle hood is welded firmly, and the spring-assisted opening is convenient. The all-angle layout facilitates maintenance. Various attachments are available for optional installation, meeting the needs of different working conditions and expanding applications.
Cab
TOPS/FOPS
Designed to meet strict TOPS/FOPS safety standards, offering superior operator visibility, ergonomic seating, and intuitive control layout.

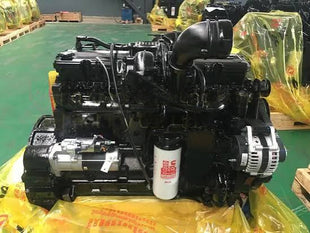

Engine
ISUZU / Cummins
Powered by world-renowned engine brands (ISUZU / Cummins ), ensuring strong performance, high fuel efficiency, and global service support.
Bucket
professional manufacturer
Engineered with wear-resistant alloy steel and reinforced stress points to deliver superior digging force and exceptional service life，offering custom production of over 300 specifications.

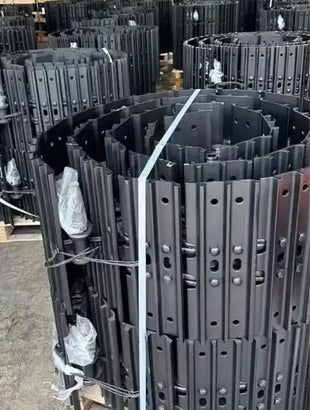

Tracks
reinforced frame structure
Built with a reinforced frame structure and high-precision hydraulic cylinder, ensuring stable backfilling and long-lasting performance

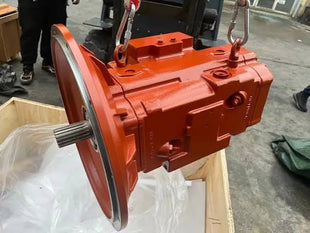

Hydraulic
KPM K3V112DT
Equipped with top-tier global brand hydraulics, delivering smooth proportional control, fast response, and proven long-term reliability
PARAMETER
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | T | 35 |
| Bucket capacity | m³ | 1.6(Standard) /1.8(Short Arm) /2.0(Short Arm) |
| Engine model | - | Cummins QSL8.9 |
| Rated power | kw/r/min | 242/2000 |
| Hydraulic pump model | - | V90N180 |
| Maximum flow（L/min） | - | 360*2 ; 320*2 |
| Overall length | mm | 11080/11150 |
| Overall width | mm | 3190 |
| Overall height（to top of boom） | mm | 3480 |
| Overall height（to top of cab） | mm | 3170 |
| Arm length | mm | 2900 |
| Boom length | mm | 6470 |
Satisfying Earthmoving! 36-Ton Excavator in Action
TE360 36-ton excavator is powered by a powerful and reliable diesel engine, delivering exceptional power, high torque, efficient fuel consumption, and stable performance. It is designed for demanding construction, mining, quarrying, road building, large-scale earthmoving, and other heavy-duty operations.
TE360 Equipped with a high-performance hydraulic system and optimized engine-hydraulic power matching, it delivers exceptional digging force, smooth and precise control, fast hydraulic response, and efficient power transmission, ensuring reliable performance, high productivity, and excellent stability in demanding working conditions.
Exceptional Power & Torque
High Digging & Lifting Performance
Fast & Precise Hydraulic Response
Efficient Engine-Hydraulic Matching
Designed for Heavy-Duty Applications
Get Your Excavator Quote
Send us your requirements and get a tailored excavator solution from TOUGH.
FAQs
Find answers to common questions about our excavators, specifications, operation, maintenance, warranty and support.
Yes. The TE360 is designed for demanding excavation conditions. Its strong digging force, high-performance hydraulic system, and robust heavy-duty structure make it suitable for hard soil, rock excavation, quarrying, and other intensive earthmoving applications. For particularly abrasive or rocky conditions, a suitable heavy-duty or rock bucket can be selected.
Yes. The TE360 is designed for projects where high digging productivity and large bucket capacity are important. It is well suited for large-scale site preparation, road construction, foundation excavation, bulk earthmoving, and other projects requiring a heavy-duty excavator.
The TE360 uses optimized engine-hydraulic power matching to maintain stable power delivery and responsive hydraulic performance. This helps the machine maintain consistent working cycles during extended operation while reducing unnecessary power losses.
Yes. The machine can be configured with different buckets and attachments according to the application. Bucket type, working equipment, and hydraulic requirements can be matched to conditions such as general excavation, heavy digging, quarrying, and material handling. Customers can discuss their specific requirements with TOUGH before ordering.
The main advantage is its higher overall working capacity. The TE360 provides greater digging and lifting capability, stronger stability, and the ability to work with larger attachments and buckets. It is particularly suitable when the project involves hard ground, large excavation volumes, or demanding working cycles where a smaller machine may require more time to complete the same work.
